Patient-setup

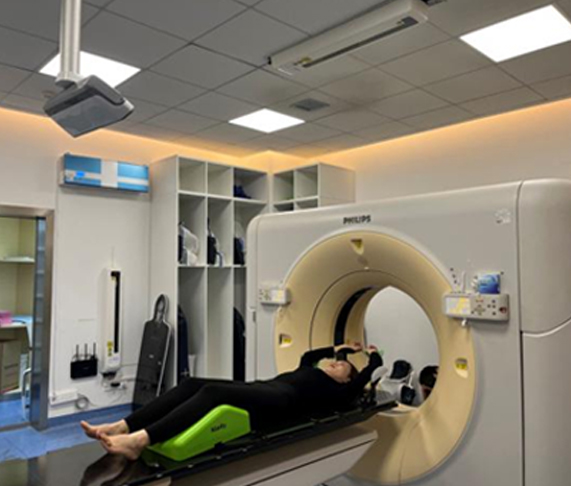

SGRT have become a cornerstone of modern image-guided radiotherapy (IGRT), fundamentally enhancing the patient setup workflow. Their primary clinical value is realized in two key areas:

Enhanced Treatment Accuracy and Safety

Reduction in Systematic Errors: By providing a real-time, high-resolution map of the patient's surface,SGRT minimizes initial setup errors. This ensures the treatment isocenter is aligned with the planned position with sub-millimeter precision.
Intra-fraction Motion Management: The system continuously monitors the patient's position during the treatment delivery. If the patient moves beyond a predefined threshold (e.g., due to respiration, discomfort, or involuntary motion), the system can automatically pause the beam or alert the therapists. This proactive safety feature prevents irradiation of healthy tissue and ensures the tumor receives the full prescribed dose.
Support for Frameless Techniques: In specialized treatments like cranial radiosurgery, which traditionally required invasive rigid frames, SGRT enables accurate and comfortable frameless setups, improving the patient experience without compromising precision.

AccuTrak system Optimized Workflow and Operational Efficiency:

Streamlined Workflow:

The system drastically reduces the time therapists spend on manual patient positioning and verification. The automated shift functionality eliminates repetitive "set up - image - shift" cycles.
Reduced Therapist Workload:

By automating the shift calculation and application, AccuTrak minimizes manual handling and potential for human error, leading to a more efficient and reproducible process.
Facilitation of Advanced Techniques:

AccuTrak is crucial for complex treatments like Deep Inspiration Breath Hold (DIBH) for left-sided breast cancer, where it provides visual coaching and monitors breath-hold consistency, ensuring cardiac sparing.

The clinical benefits are driven by a suite of sophisticated, user-centric features

Pre-Setup Visualization: Before the initial setup, the system projects a color "surface" image overlay on the reference surface of the patient. This provides therapists with an immediate visual guide for a rough, yet highly effective, initial placement.
Detailed Anatomical Coaching: For the final fine-tuning, the system offers detailed guidance for specific body parts (head, arms, legs). It displays intuitive on-screen arrows and instructions (e.g., "Move left arm 5mm down"), allowing for precise adjustments without constant reference to external markers.

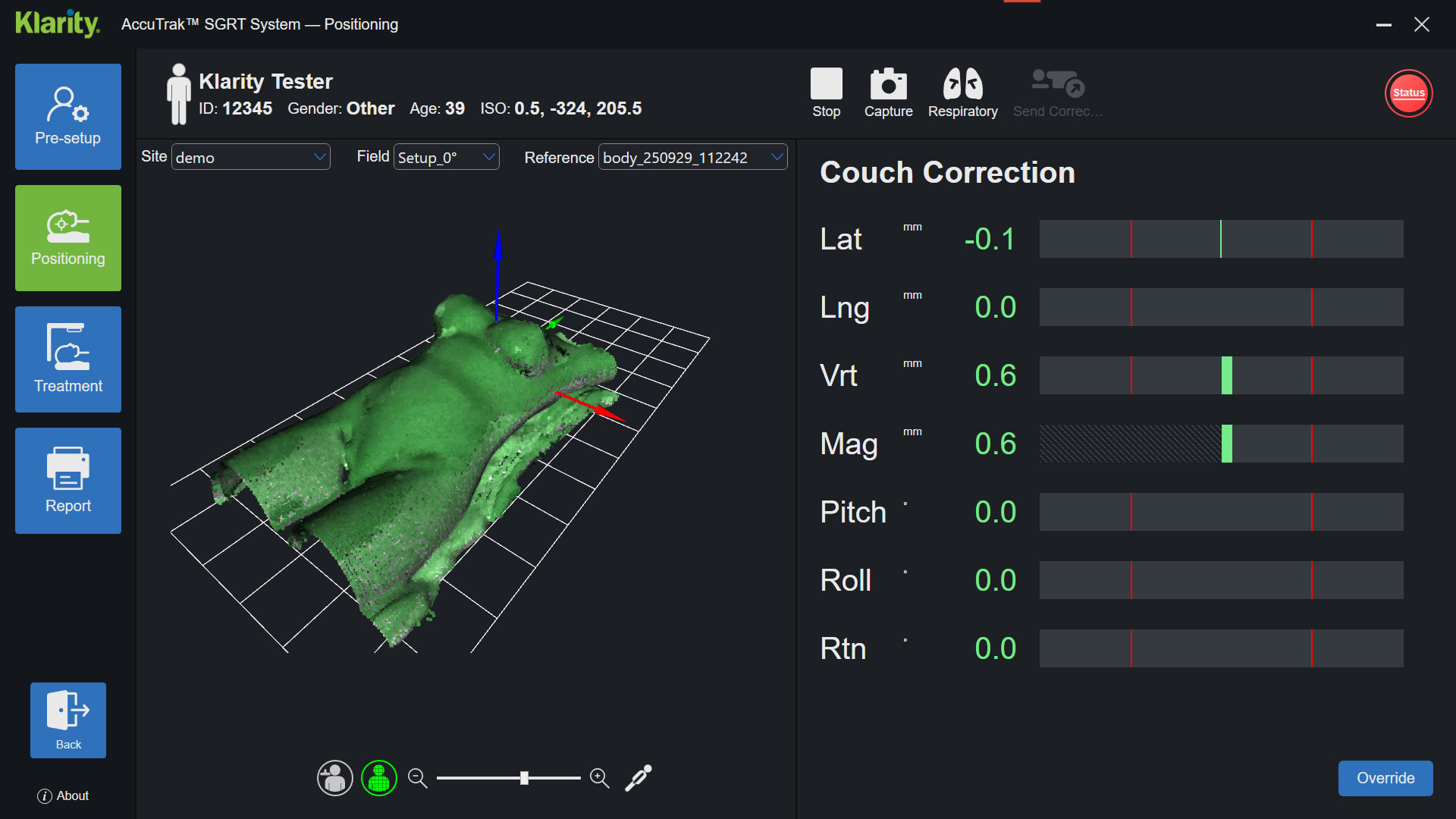

Seamless Integration: The system is fully integrated with the linear accelerator's treatment 4D/6Dcouch. After a final surface scan, it calculates the 6D correction vector (three translational and three rotational shifts).
Automated Execution: With a single command, this correction data is sent directly to the couch, which then automatically moves to the correct position. This "Shift-on-Surface" feature is as reliable as traditional "Shift-on-CBCT" but is often significantly faster as it does not involve ionizing radiation
Zero Dose Imaging: Unlike X-ray-based imaging (kV-CBCT, MV-CT), OSMS uses harmless visible or near-infrared light. This allows for continuous monitoring throughout the entire treatment fraction without adding any additional radiation dose to the patient.
Real-time 3D Surface Mapping: Using stereoscopic cameras, the system creates a dynamic 3D model of the patient's surface, tracking any detail motions of the patient
