Fixed Laser System

The Klarity AxisLaser™ fixed laser system is designed to be compatible with a wide range of environments, including linear accelerator rooms, simulation suites, and film processing areas. It is an indispensable tool for precise patient positioning and repositioning, ensuring that treatments delivered by linear accelerators achieve the required levels of accuracy

Klarity AxisLaser™ Fixed

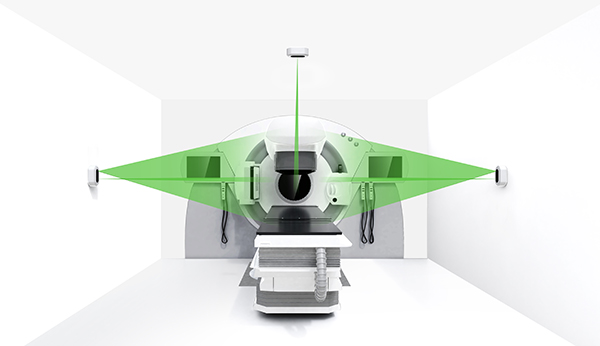

One ceiling laser projects the sagittal line, and two crosshair lasers project the transverse and coronal lines.

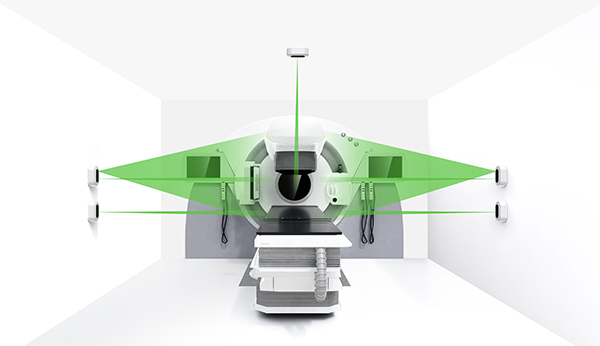

One ceiling laser projects the sagittal line, two crosshair lasers project the transverse and coronal lines, and the two lasers below the isocenter project the coronal line.

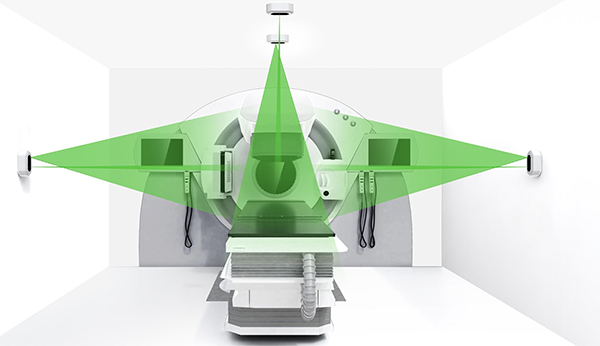

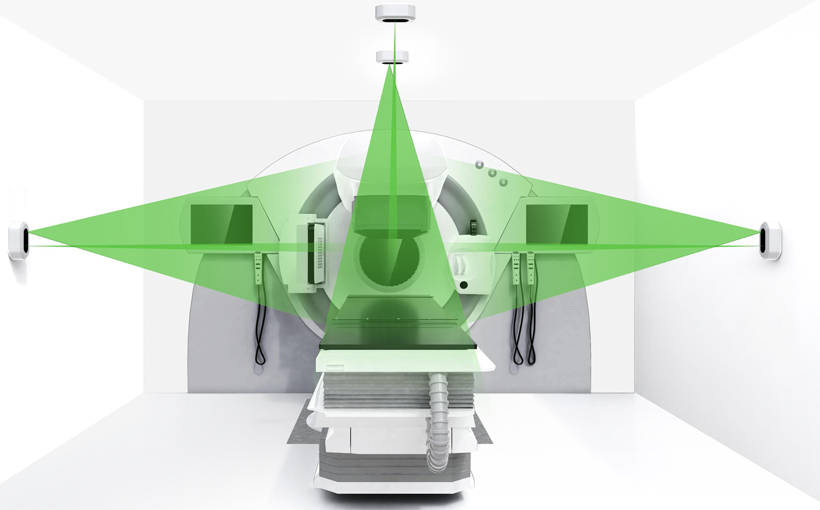

One ceiling laser projects the sagittal line, two crosshair lasers project the transverse and coronal lines, and one crosshair laser is added above the isocenter to avoid shadow areas.

Specification

Technical data
Laser color ( typical wave length )	Green ( 520nm±20nm )	Line Width	<1mm ( within 4m marking area )
Output Power	<1mW ( per laser )	Line Width Adjustment	Adjustable via variable-focus lens
Laser class	Class II	Line Length	>3m ( at 3m from light source )
Travel range	700mm	Power supply	100-240VAC
Positioning accuracy	±0.1mm	Operating temperature	15-30°
Projection precision ( Up to 4 m distance )	±0.5mm
