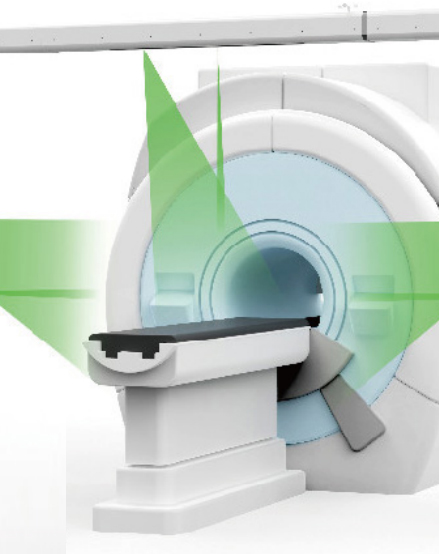

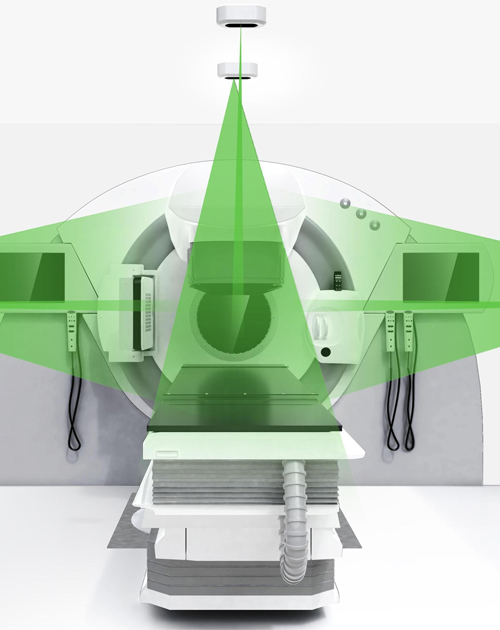

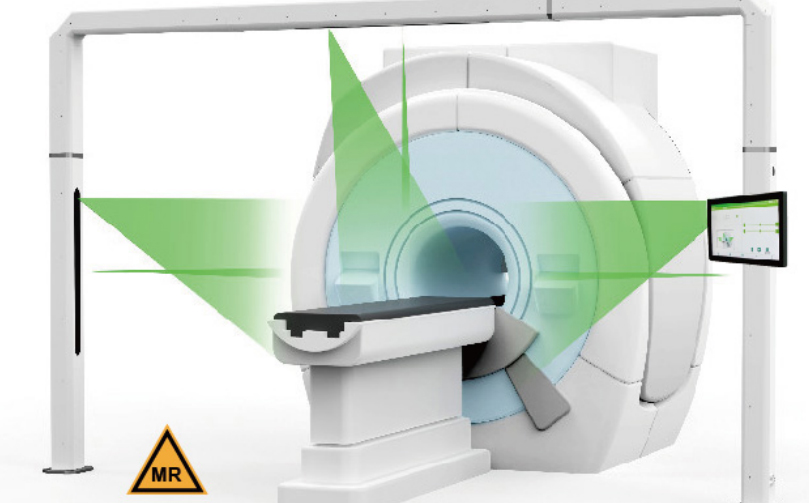

The Klarity AxisLaser™ MR Laser System is a high precision laser positioning system designed specifically for MR simulation in radiation therapy. Built for use in
1.5T and 3.0T MRI environments, it creates a visible 3D laser coordinate system to enable accurate patient
marking and ensure seamless alignment between MR and CT images.
The laser lines can be remotely controlled to move, deflect, and rotate using the handheld remote control.
Features a unique phantom design that enables more intuitive and simplified quality control.
Grating scale feedback combined with high-precision rails ensures stable, repeatable positioning and reduces human-induced errors.
Green laser with adjustable focal length adapts to different distances, ensuring clear and highly visible laser lines.
15.6-inch touchscreen combined with a remote control enables easy installation and flexible, intuitive operation.
Low-magnetic components ensure safe and reliable use in strong magnetic field environments.
| Technical data | |||
| Laser color ( typical wave length ) | Green ( 520nm±20nm ) | Travel range | 700mm |
| Line width ( up to 4 m distance ) | ≤0.5mm | Power supply | 100-240VAC |
| Line length ( at 4 m distance ) | >4m | Dimensions ( H x W x D ) | 1510x145x140 mm ( K-ARL-M3 ) |
| Laser class | Class II | Weight | 28kg ( K-ARL-M3 ) |
| Positioning accuracy | ±0.1mm | Operating temperature | 15-30° |
| Projection precision ( Up to 4 m distance ) | ±0.5mm | ||
