The Klarity AxisLaser™ mobile laser system is engineered for advanced precision in radiotherapy applications, supporting both free motion control and coordinate input motion control. This dual control functionality allows clinicians to easily position the
laser according to their specific needs, facilitating an adaptable and efficient workflow during treatment preparations.

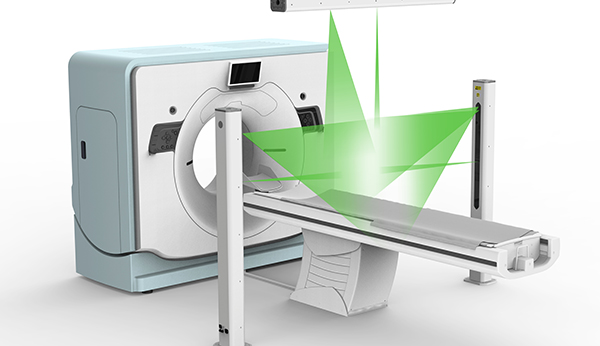

Sagittal plane: A movable line projected by the top laser.
Transversal and coronal planes: A fixed line projected by the top laser and a crossed set of fixed laser lines from both sides.

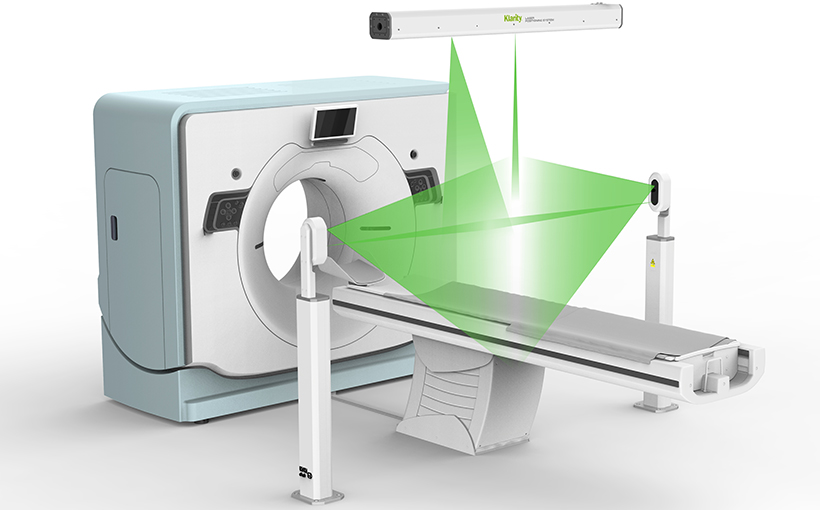

Sagittal plane: A movable line projected by the top laser.
Transversal and coronal planes: A fixed line projected by the top laser and a fixed line from each standing column laser.
Coronal plane: A movable line from each standing column laser

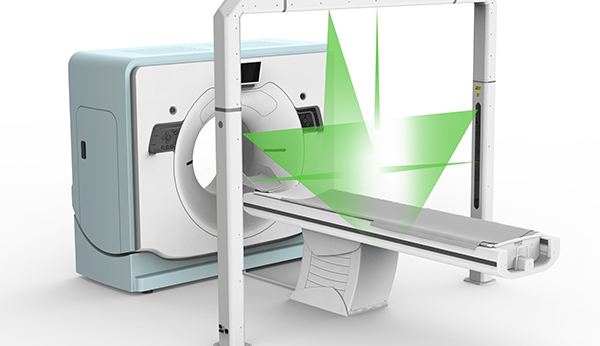

Sagittal plane: A movable line projected by the top laser.
Transverse plane: A fixed line projected by the top laser, and a fixed line from each standing column laser.
Coronal plane: A movable line from each standing column laser.

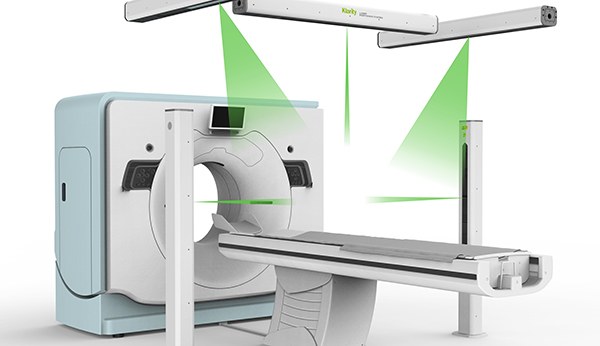

Sagittal plane: A movable line projected by the top laser.
Transverse plane: Movable lines projected by both top lasers.
Coronal plane: A movable line from each standing column lase.
| Technical data | |||
| Laser color ( typical wave length ) | Green ( 520nm±20nm ) | Line Width | <1mm ( within 4m marking area ) |
| Output Power | <1mW ( per laser ) | Line Width Adjustment | Adjustable via variable-focus lens |
| Laser class | Class II | Line Length | >3m ( at 3m from light source ) |
| Travel range | 700mm | Power supply | 100-240VAC |
| Positioning accuracy | ±0.1mm | Operating temperature | 15-30° |
| Projection precision ( Up to 4 m distance ) | ±0.5mm | ||
